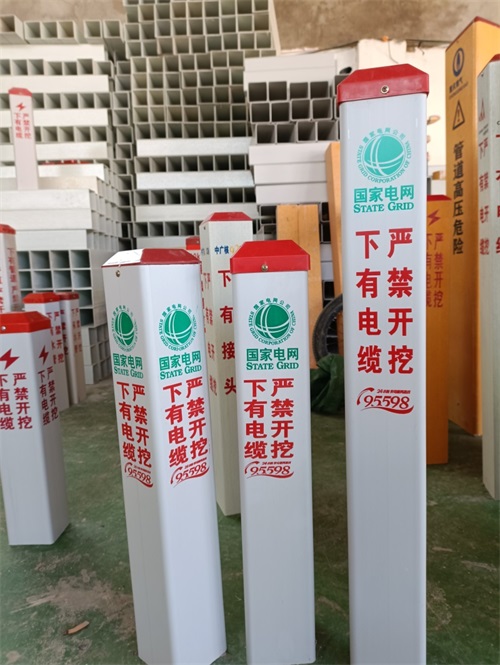

电缆警示桩桩体上的内容很多，其内容大致分为对内，对外信息，对外信息是产品安装的根本目的。所以必须要包括管道的类型，所属单位的名称、警示用语以及举报联系电话。

There are many contents on the cable warning pile, which can be roughly divided into internal and external information. External information is the fundamental purpose of product installation. Therefore, it is necessary to include the type of pipeline, the name of the affiliated unit, warning words and the telephone number for reporting.

写明管道所属单位名称以及联系电话是为了方便其他施工团队在施工时可以联系到所属公司或者当发生意外时（例如地下埋设管道被损坏）市民能及时通知管道权属单位。警示用语可包括“下有电缆管道，严禁开挖”等等内容，起到警示别人的作用。

The name and telephone number of the pipeline owner are written in order to facilitate other construction teams to contact the company they belong to during construction, or the citizens can timely notify the pipeline owner in case of accidents (such as damage to underground buried pipelines). The warning words can include "There are cable pipes below, excavation is strictly prohibited" and other contents to warn others.

对内信息则包括标志桩，管道区域名称，企业标识等。这个内容是为了方便公司员工日后的巡查工作，企业自行掌握，不做严格要求。

The internal information includes marker posts, pipeline area names, enterprise identification, etc. This content is for the convenience of the company's employees' future inspection work, which the enterprise can master by itself without strict requirements.

电缆警示桩的印字工艺一般有丝网印刷、UV印刷、激光雕刻、机械雕刻四种方式，一般根据不同的需求进行选择，激光和机械雕刻字体更有立体感，UV印刷更灵活，字体鲜艳，同时一些渐变颜色和编号等版型不固定的可以使用UV印刷。丝网印刷是传统的印制方式，一般印制比较简单的版式。

The printing process of cable warning posts generally includes screen printing, UV printing, laser engraving, and mechanical engraving, which are generally selected according to different needs. Laser and mechanical engraving fonts are more three-dimensional, UV printing is more flexible, and fonts are bright. At the same time, UV printing can be used for some types that are not fixed, such as gradient color and number. Screen printing is a traditional printing method, which generally prints a relatively simple format.

电缆警示桩设置规范

Code for setting of cable warning posts

1、全封闭禁入道路不得设置电缆警示桩。电缆警示桩的安装间距宜为100m。地面平坦、视碍少、管道路由顺直的情况，电缆警示桩的安装间距可大100m。特殊地段，具体铺设规范制度进行管道标志桩的铺设

1. Cable warning piles shall not be set on the closed roads. The installation spacing of cable warning piles should be 100m. The installation spacing of cable warning piles can be greater than 100m under the condition of flat ground, few visual obstacles and smooth and straight pipeline route. In special sections, the laying of pipeline marker piles shall be carried out according to the specific laying specification system

2、电缆警示桩应安装在管道的正上方，当电缆警示桩用作转角桩时，应安装在转角段中点的正上方。当管道正上方没有安装条件时，可设置在相对距离教近的路边绿化带内，并在电缆警示桩上标明管桩适意图。

2. The cable warning pile shall be installed directly above the pipe. When the cable warning pile is used as a corner pile, it shall be installed directly above the midpoint of the corner section. When there is no installation condition directly above the pipeline, it can be set in the roadside green belt which is relatively close to the pipeline, and the pipe pile suitability diagram shall be marked on the cable warning pile.

3、电缆警示桩是埋设在高压管线沿线以塑钢、玻璃钢、复合材质为主，涂有黄色标记的电缆走向标志桩，为起提示警示作用，标有“燃气管道、燃气电话、管线桩号、管线走向、电子巡检信息钮”，便于巡线抢修人员迅速找准管线位置，赢得抢修时机。

3. The cable warning pile is a cable route marker pile buried along the high pressure pipeline, mainly made of plastic steel, glass fiber reinforced plastic and composite materials, painted with yellow marks. In order to play a warning role, it is marked with "gas pipeline, gas telephone, pipeline stake number, pipeline route, and electronic patrol information button", which is convenient for the line patrol and emergency repair personnel to quickly locate the pipeline and win the opportunity for emergency repair.

电缆警示桩的印制内容以及设置规范相关内容就讲解到这里了，您对此有怎样的疑惑或者需求就来我们网站http://www.binzhouhengtong.com咨询吧！

The printed contents and setting specifications of cable warning posts will be explained here. If you have any doubts or needs, please come to our website http://www.binzhouhengtong.com Ask!
