电缆警示桩是埋设在高压管线沿线以塑钢、玻璃钢、复合材质为主，涂有黄色标记的电缆走向标志桩，为起提示警示作用，标有“燃气管道、燃气电话、管线桩号、管线走向、电子巡检信息钮”，便于巡线抢修人员迅速找准管线位置，赢得抢修时机。下面来讲讲电缆警示桩的作用及设置规范。

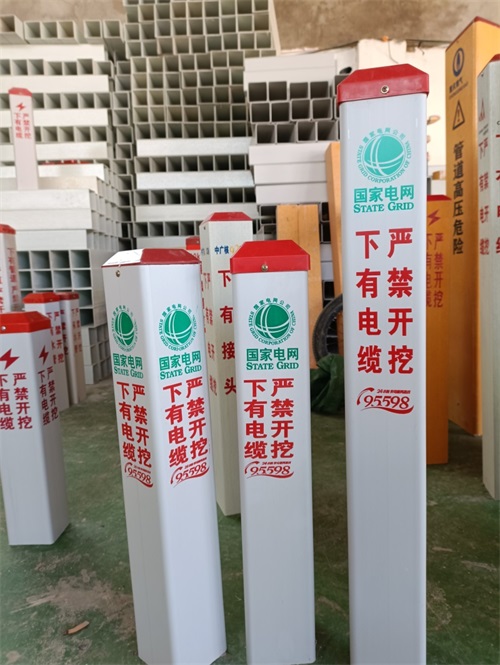

The cable warning pile is a cable route marker pile buried along the high-pressure pipeline, mainly made of plastic steel, glass fiber reinforced plastic and composite materials, painted with yellow marks. In order to play a warning role, it is marked with "gas pipeline, gas telephone, pipeline stake number, pipeline route, and electronic patrol information button", which is convenient for the line patrol and emergency repair personnel to quickly locate the pipeline and win the opportunity for emergency repair. Let's talk about the function and setting specifications of cable warning piles.

电缆警示桩的作用

Function of cable warning pile

1、将其安装好之后，可起到提示以及警示别人的作用。

1. After installation, it can play the role of reminding and warning others.

2、如果地下埋设管道有被损坏的地方时，巡线抢修人员可以根据桩体上的管线的走线、桩号之类的内容，迅速找准地下埋设管线的位置。并且及时采取措施，从而赢得抢修时机。

2. If the underground pipeline is damaged, the line patrol and repair personnel can quickly find the location of the underground pipeline according to the route and stake number of the pipeline on the pile. And take measures in time to win the opportunity for emergency repair.

3、其的安装，还可以便于地下埋设管道的管理公司员工定期的巡查工作。

3. Its installation can also facilitate the regular inspection of the staff of the management company of the underground pipeline.

4、如果有施工团队涉及到高压管线区域，施工方看到其之后，可以避开地下埋设管线。避免管线被损坏的情况，达到维护供气或供电的目的，如果施工方明知道地下有埋设管道还损坏的话，是需要负法律责任的。

4. If there is a construction team involved in the high-pressure pipeline area, the construction party can avoid the buried pipeline after seeing it. To avoid damage to the pipeline and achieve the purpose of maintaining the safety of gas supply or power supply, if the construction party knows that the buried pipeline is also damaged, it needs to bear legal responsibility.

5、桩体上一般都会标有管理公司的名称以及电话，如果有市民发现地下埋设管道有被损坏时。可以及时给管理公司打电话，避免危险事故的发生。

5. Generally, the name and telephone number of the management company will be marked on the pile. If a citizen finds that the buried pipeline has been damaged. Call the management company in time to avoid dangerous accidents.

电缆警示桩设置规范

Code for setting of cable warning posts

1、全封闭禁入道路不得设置电缆警示桩。电缆警示桩的安装间距宜为100m。地面平坦、视碍少、管道路由顺直的情况，电缆警示桩的安装间距可大100m。特殊地段，具体铺设规范制度进行管道标志桩的铺设

1. Cable warning piles shall not be set on the closed roads. The installation spacing of cable warning piles should be 100m. The installation spacing of cable warning piles can be greater than 100m under the condition of flat ground, few visual obstacles and smooth and straight pipeline route. In special sections, the laying of pipeline marker piles shall be carried out according to the specific laying specification system

2、电缆警示桩应安装在管道的正上方，当电缆警示桩用作转角桩时，应安装在转角段中点的正上方。当管道正上方没有安装条件时，可设置在相对距离教近的路边绿化带内，并在电缆警示桩上标明管桩适意图。

2. The cable warning pile shall be installed directly above the pipe. When the cable warning pile is used as a corner pile, it shall be installed directly above the midpoint of the corner section. When there is no installation condition directly above the pipeline, it can be set in the roadside green belt which is relatively close to the pipeline, and the pipe pile suitability diagram shall be marked on the cable warning pile.

此外相关施工的步骤流程为：准备的工作——相关仪器的检查和矫正——进行测量放线——固定交桩——规划线路——调整交桩——完工后需要记录相关信息。更多相关内容就来我们网站http://www.binzhouhengtong.com咨询吧！

In addition, the process of relevant construction steps is: preparation work - inspection and correction of relevant instruments - survey and setting out - fixed pile delivery - planning route - adjustment of pile delivery - relevant information needs to be recorded after completion. Come to our website http://www.binzhouhengtong.com for more information!
